ECO BRASS® C69300 is a high-performance, lead-free brass. ECO BRASS C69300 lead-free and compliant with the Federal Drinking Water Act. It comes in hexagon, round, and other shaped brass rods and brass bars. It’s a great replacement for leaded fittings and its corrosion resistance properties make it an excellent solution for water supply and plumbing applications.

ECO BRASS C69300 has excellent dezincification corrosion resistance and excellent stress corrosion cracking resistance. ECO BRASS C69300 is corrosion-resistant to chemicals found in water and gas. ECO BRASS C69300 has high strength equivalent to stainless steel. ECO BRASS C69300 also has good machinability, excellent hot forgeability, easily accepts solder and brazing, and has excellent polishing and plating capabilities.

ECO BRASS C69300 also meets the U.S. EPA standards for antimicrobial performance which kills Staphylococcus aureus, Pseudomonas aeruginosa, Salmonella choleraesuis, Mycobacterium bovis (BCG), Clostridium difficile, and viruses. Therefore, it can be used as an antimicrobial touch surface in homes and health care facilities.

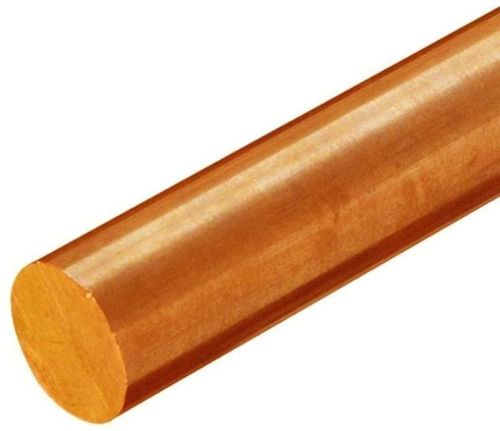

C69400

Product description: Silicon red brass

Tempers: H04 hard

Solids: 3/8" to 2" O.D.

Hex: 3/8" to 2" O.D.

Standard lengths: 144"

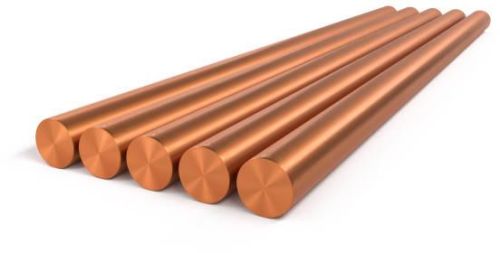

C69430

Product description: Silicon red brass

Tempers: H04 hard

Solids: 3/8" to 2" O.D.

Hex: 3/8" to 2" O.D.

Standard lengths: 144"

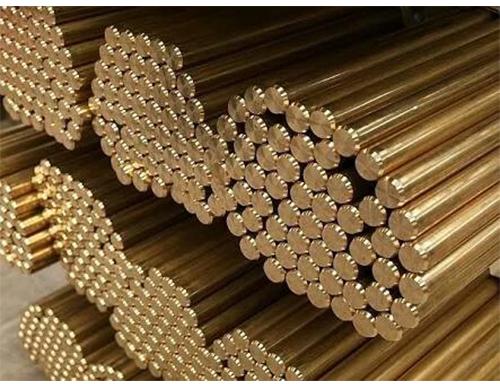

CuZn21Si3P  C69300 Lead-free ECO BRASS. It is a great replacement for leaded fittings and its corrosion resistance properties make it an excellent solution for water supply and plumbing applications. also has good machinability, excellent hot forgeability, easily accepts solder and brazing, and has excellent polishing and plating capabilities.  TYPICAL USES for C86300 High Tensile Manganese Bronze:  Industrial: Plumbing: Stop Valves, PEX fittings, Ball valves, Commercial and Residential water faucet parts. Automotive: Fluid Connectors, Sensor Bodies, Thermostat Parts. Industrial: Automatic Screw Machine Parts, Bolts, Condenser Tube Plate, Nuts, Pneumatic Fittings, Pump Parts, Screw Machine Product, Valve Stems, Valve Bodies for Water.

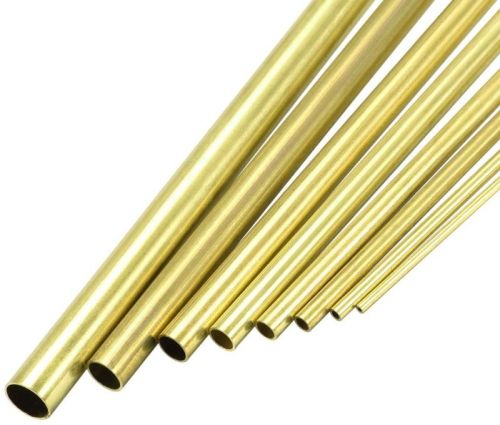

CUZN30 Yellow brass CuZn30 CUZN30 CW505L  C26000

CUZN30 brass, also known as C26000, is an alloy of copper and zinc. Its copper content is 70% copper and 30% zinc. This yellow brass has the highest ductility of all yellow brass. It is very easily polished,

Lead-free brass, optimized for cold forming. This alloy is recommended for stamping and deep drawing.  In contrast, it is not recommended for hot forming and its machinability is poor as compared with leaded brass. The electrical conductivity is 27% IACS.

Cold formability is excellent, hot formability very poor. The alloy is very easily cold drawn and stamped.  It is one of the most suitable brasses for mirror polishing. Annealing in air requires subsequent pickling to remove the surface oxide layer. Annealing can also be done in a neutral (Argon) or reducing (cracked ammoniac,(N2+H2) atmosphere.The most performant microstructures and mechanical properties are achieved with annealing temperatures to  the lower bound of the temperature interval given above. Machining is difficult. Machinability is estimated at 30% on a scale with the free cutting brass CuZn35.5Pb3 at 100%

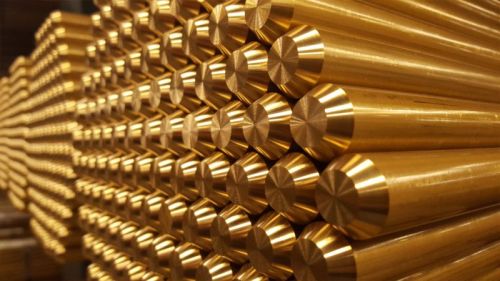

CuZn36Pb3 alloy has special characteristics for machining operations, allowing to obtain optimum results through free cutting operations.

: CuZn36Pb3. Number: CW603N. Classification: Copper-zinc-lead alloy. Density, 8.5 g/cm ³. Standard: EN 12164: 1998 Copper and copper alloys.

CuZn38Pb4. Number: CW609N. Classification: Copper-zinc-lead alloy. Density, 8.4 g/cm ³. Standard: EN 12164: 1998 Copper and copper alloys.

DIN EN 12164 CuZn38Pb4 Copper and Copper Alloy Rod for Free Machining Purpose.

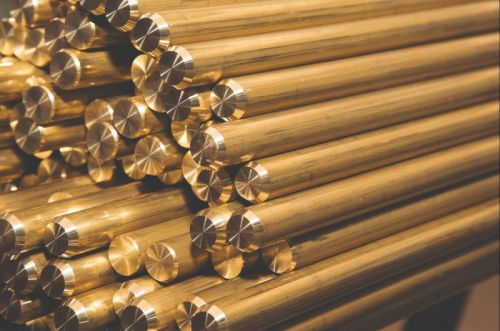

CuZn39Pb3. Number: CW614N. Classification: Copper-zinc-lead alloy. Density, 8.4 g/cm ³. Standard: EN 12164: 1998 Copper and copper alloys.

CuZn39Pb3. International. CuZn39Pb3. BS. CZ121. UNS. C38500. EN. Standard alloy for machining with chip removal.

CuZn40 Lead Free Brass Rod

These rod are also known as Reverting Quality Brass Rod and is mainly used in blanking, riveting , bending, hot forging, watch case and belts, etc.

S4413

 IS4170

 DTD-627

 BS2874/86 CZ-109

 BS2872/86 CZ-108

The CW602N / CZ132 dezincification resistant brass (DZR Brass) is essentially a leaded arsenical brass with a duplex structure. As its name suggests it was originally developed to provide good resistance to dezincification type corrosion which is experienced by normal hot working brasses.

As well as the improved dezincification / corrosion resistance the CW602N / CZ132 also offers good strength levels, is readily machined and easily hot forged. Its primary usage over the years has been for water fittings that are produced by hot stamping and machining.

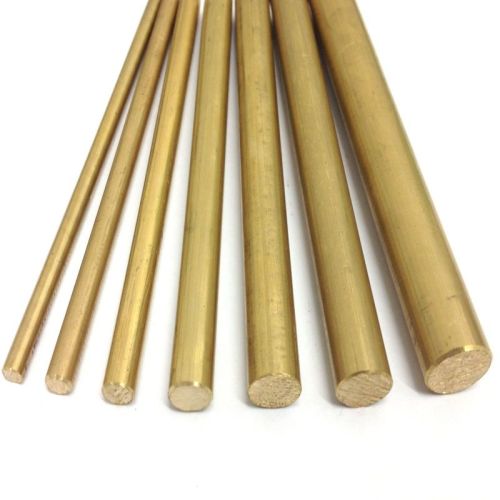

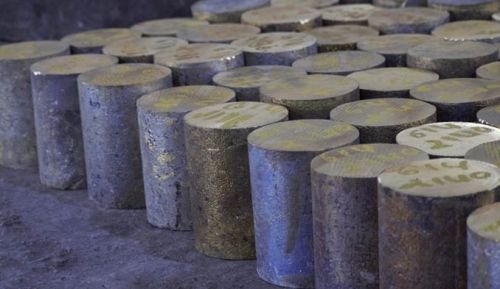

CW614N, Free cutting brass, is a significantly improved form of 60/40 brass, with excellent free cutting properties. It is used in the mass production of brass components where maximum output and longest tool life are required, and where no further cold forming after machining is required

CW617N are the reference materials for hot working. The mean Lead content provides good machinability of the drop-forged part. Because of its, Composition the alloy is also suited for the production of drawn and complex profile.

cw713r high tensile brass

cw713r (cuzn37mn3al2pbsi)

bs en 12164, bs en 12165, bs en 12167

cw713r is a high tensile brass which is alloyed with aluminum, manganese and silicon etc. which makes this alloy almost as hard as aluminum bronze, but considerably easier to process. cw713r also has good corrosion, wear resistance and machinability.

typical applications

industrial: bushings, cams, shafts, wear plates, gears, chain guides, food conveyor, connecting rods

fabrication processes: hot forging and pressing & machining

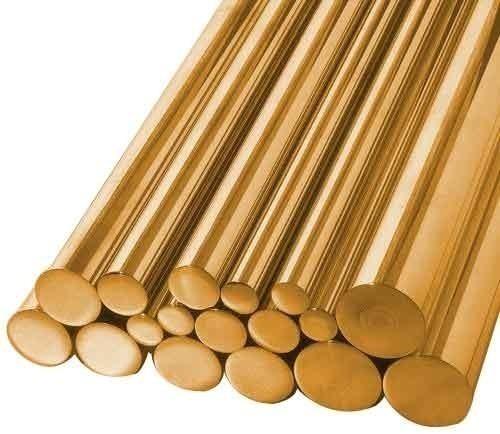

CW713R High Tensile Brass

CW713R (CuZn37Mn3Al2PbSi)

BS EN 12164, BS EN 12165, BS EN 12167

CW713R is a high tensile brass which is alloyed with aluminum, manganese and silicon etc. which makes this hard as aluminum bronze, but considerably easier to process. CW713R also has good corrosion, wear resistance and machinability.

Typical Applications

INDUSTRIAL: Bushings, Cams, Shafts, Wear Plates, Gears, Chain Guides, Food Conveyor, Connecting Rods

Fabrication Processes: Hot Forging and Pressing & Machining

BS 2871 Part 3 CZ - 111 Admiralty Brass

We bring forth for our clients an exhaustive gamut of Aluminum Brass Tubes, Aluminum Brass Tubing which is preferred across the globe owing to its superior quality, durability and accurate dimensions. As an admiralty brass tubes manufacturer in India, we manufacture these tubes using cutting edge techniques and excellent quality raw materials that are procured from trusted & reliable vendors. To ensure confirmation with the ISO standards, the entire range of Aluminum Brass Tubes is examined by adroit quality controllers before final delivery. Clients can buy these tubes from us at industry leading prices.

CZ132 / CW602N - DZR BRASS

The CW602N / CZ132 dezincification resistant brass (DZR Brass) is essentially a leaded arsenical brass with a duplex structure. As its name suggests it was originally developed to provide good resistance to dezincification type corrosion which is experienced by normal hot working brasses.

As well as the improved dezincification / corrosion resistance the CW602N / CZ132 also offers good strength levels, is readily machined and easily hot forged. Its primary usage over the years has been for water fittings that are produced by hot stamping and machining.

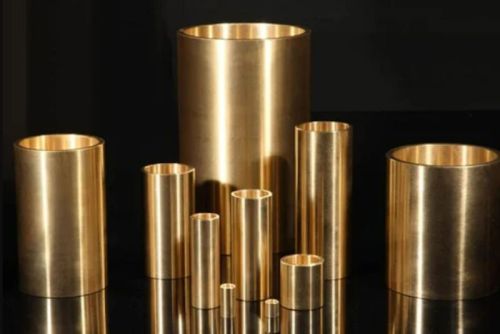

Forging Brass Hollow Rods

ASTM B 124 C37700

BS 2874 CZ 122

IS 3488 Forging Brass

C37700 CuZn39Pb2is the most used alloy for machining operations. It has excellent hot working and forging properties. Cold forming is possible only to a minor extend.

Main Applications

Architecture:Ornamental Trim. Consumer: Jewelry, Emblems, Plaques, Medallions. Electrical: Components for the Electrical Industry,Connectors, Rotor Bars, AC Motors. FastenersIndustrial:Metal Goods, Base for Vitreous Enamel, Base for Gold Plate. Ordnance: Primers, Small Arm Ammunition: Primer Caps, Bullet Jackets, Fuse Caps, Firing Pin Support Shells, Bullet. Other:Coins, Tokens, Medals.

• astm b 455


• b 16 c 38500


• c 36000


• bs 2874 cz - 121pb3 or cz124


• is319 grade i/ ii/ iii


• jis3250 h c3604 or c3602

Architectural bronze alloys enhance the inside and outside appearances of buildings and last for a long time. They are available in many forms and are generally completed by waxing.

UNS C38500 architectural bronze alloys have a yellow-gold color. The following datasheet provides an overview of UNS C38500 bronze alloys.

Fabrication and Heat Treatment

Annealing

UNS C38500 architectural bronze alloys are annealed between 427 and 593°C (800 and 1100°F).

Cold Working

UNS C38500 bronze alloys have poor cold working capacity.

Welding

Brazing and soldering processes are recommended for UNS C38500 bronze alloys. Welding processes not recommended for these alloys include spot welding, gas shielded arc welding, seam welding, coated metal arc welding and oxyacetylene welding

Forging

UNS C38500 bronze alloys can be forged between 621 and 732°C (1150 and 1350°F).

Machinability

UNS C38500 bronze alloys have a machinability rating of 90.

Hot Working

UNS C38500 bronze alloys have excellent hot forming capacity.

Applications

UNS C38500 architectural bronze alloys are used for trim and architectural hardware.
