C36500 Leaded Muntz is copper, alloyed with zinc, tin and lead.  Muntz metal has strength and corrosion resistance similar to C46400 Naval Brass but the higher lead content results in better machinability.  C365 Muntz metal found historical prominence in the shipbuilding industry, primarily as a hull liner.  C36500 Leaded Munts was adopted by the pressure vessel industry and is still, for many manufactures, the preferred alloy for tubesheets and condenser/cooler plates.  Because of its warm reddish gold hue and corrosion resistance, 365 Muntz also has numerous decorative and architectural applications.

UNS C37000 (CW607N) Free-Cutting Muntz Metal

C37000 Muntz Metal is a brass formulated for primary forming into wrought products. Cited properties are appropriate for the as-fabricated (no temper or treatment) condition. CW607N is the EN numeric designation for this material. C37000 is the UNS number. Additionally, the EN chemical designation is CuZn38Pb1. The British Standard (BS) designation is CZ129. And the common industry name is 60-39-1. Older literature may refer to this material as ASTM Alloy 6, but this is now discouraged.

 It has a moderately low tensile strength among the wrought brasses in the database.



 The graph bars on the material properties cards below compare C37000 Muntz Metal to: wrought brasses (top), all copper alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.

Forging Brass UNS C37700

Brass is an alloy mainly consisting of copper and zinc. Brass alloys can be easily shaped and are available in various colors. Brass has high thermal conductivity. UNS C37700 forging brass alloys have good forgeability. They are available in the form of rod.

Architectural Bronze UNS C38000

Architectural bronze develops a golden luster when used in leaded brass CuZn41Pb1Al. Architectural bronze alloys enhance the inside and outside appearances of buildings and last for a long time. They are available in many forms and are generally completed by waxing.

Architectural Bronze UNS C38500

Architectural bronze alloys enhance the inside and outside appearances of buildings and last for a long time. They are available in many forms and are generally completed by waxing.

Admiralty Brass tubes – C44300 - has good corrosion resistance and is specially used for tubing of steam condensers cooled with fresh, salt or brackish water. Admiralty metal tubes are also used for heat exchangers in oil refineries, in which corrosion from sulfur compounds and contaminated water may be very severe, and for feed-water heaters and heat-exchanger equipment as well as other industrial processes.

C46200 Naval Brass - Cold Heading (Wire)

C462 brasses are very useful because of their strength, ductility & formability, fair electrical conductivity, and good corrosion resistance. Common applications for brasses include forged, stamped, rolled, and cold-headed products for electrical, mechanical or corrosion resistant applications. Due to their colorful nature, brasses are often used for decorative and architectural products and marine hardware.



Specifications

End Product        Specification

Bar         ASTM B21

FEDERAL QQ-B-639

Bolts      ASTM F468

Nuts       ASTM F467

Plate      FEDERAL QQ-B-639

Rod        ASTM B21

Screws  ASTM F468

Shapes  ASTM B21

Sheet     FEDERAL QQ-B-639

Studs     ASTM F46

C46400 Naval Brass "Lead Free"

Standards: ASTM B-21, ASTM B-124, ASTM B-171, SAE J461, SAE J463, SAE 73, AMS 4611, AMS 4612, DIN 3.053



Naval Brass C46400 is nominally composed of 60% copper, 39.2% zinc, and 0.8% tin. As is typical of brass alloys with the duplex alpha + beta structure, C46400 has good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the alloy an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloy is also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.



Typical Uses for C46400 Naval Brass "Lead-Free":

BUILDERS HARDWARE: Lock Pins



ELECTRICAL: Precision Shipboard Equipment



FASTENERS: Rivets, Bolts, Nuts



INDUSTRIAL: Welding Rod, Condenser Plates, Structural Uses, Valve Stems, Balls, Heat Exchanger Tube, Aircraft Turn Buckle Barrels, Bearings, Dies, Pressure Vessels, Bearings, Bushings, Hub Cones



MARINE: Propeller Shafts, Marine Hardware, Decorative Fittings, Shafting, Propeller Shafts, Turnbuckles



ORDINANCE: Missile Components



OTHER: Baffle Plates and Flanges



PLUMBING: Fittings



Shapes & Sizes Available From NBM

SOLID BAR . . . . . . . . . . . . 3/16" - 12" diameter



HEX & SQUARE BARS . . . . up to 3"



PLATES (HOT ROLLED) . . . .cut to size, up to 6" thick



SHEETS (COLD ROLLED) . . up to 1/4" thick



DISCS . . . . . . . . . . . . . . . . .cut to size, up to 6" thick



C46400 Naval Brass Specifications

End Product        Specification

Bar         AMS 4611, 4612, ASTM B21, FEDERAL QQ-B-639, SAE J463, J461

Bar, Forging        ASTM B124

Bolts      ASTM F468

Forgings, Die      ASTM B283

Nuts       ASTM F467

Plate      FEDERAL QQ-B-639

Plate, Clad          ASTM B432

Plate, Condenser Tube   ASME SB171, ASTM B171

Rod        AMS 4611, 4612, ASTM B21, SAE J463, J461

Rod, Forging       ASTM B124

Screws  ASTM F468

Shapes  ASTM B21

Shapes, ForgingASTM B124

Sheet     FEDERAL QQ-B-639

Strip       FEDERAL QQ-B-639, SAE J463, J461

Studs     ASTM F468

Wire, Metallizing              MILITARY MIL-W-6712

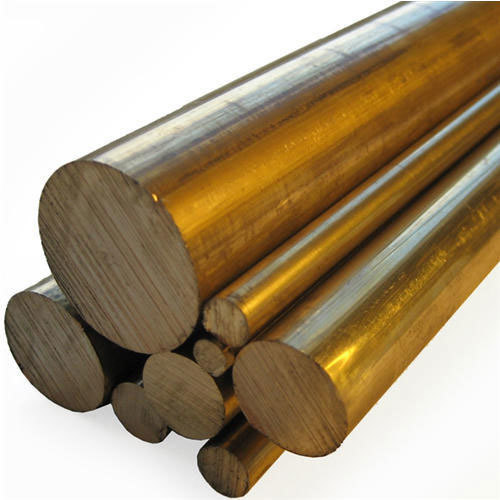

C48200 Naval Brass "Medium Lead"

C482 Applications:Marine hardware, screw machine products, valve stems.

Common Fabrication Processes

Hot forging, pressing and machining.

Mechanical Properties

Specifications

Product

Specification



Bar

ASTM B21

FEDERAL QQ-B-639



Bar, Forging



ASTM B124



Forgings, Die



ASTM B283



Plate



FEDERAL QQ-B-639



Rod



ASTM B21



Rod, Forging



ASTM B124



Shapes



ASTM B21



Shapes, Forging



ASTM B124



Sheet



FEDERAL QQ-B-639



Strip



FEDERAL QQ-B-639



C48500 Naval Brass "High Leaded"



ASTM B21

High ductility, high electrical and thermal conductivity, high impact strength, good creep resistance, ease of welding, and low volatility under high vacuum.

Typical Uses for C48500 Naval Brass "High Leaded":

FASTENERS: Fastners

INDUSTRIAL: Valve Stems, Light Bearings, Gears, Screw Machine Parts

MARINE: Marine Hardware, Seawater Valve Stems

Specifications

End Product	Specification
Bar	ASTM B21, FEDERAL QQ-B-639
Bar, Forging	ASTM B124
Forgins, Die	ASTM B283
Plate	FEDERAL QQ-B-639
Rod	ASTM B21
Rod, Forging	ASTM B124
Shapes	ASTM B21
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-B-639
Strip	FEDERAL QQ-B-639

Naval Brasses are nominally composed of 60% copper, 39.2% zinc and 0.8% tin. As are typical of brass alloys. Naval brasses have good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the C486 alloys an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloys are also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.

Naval Brasses are nominally composed of 60% copper, 39.2% zinc and 0.8% tin. As are typical of brass alloys. Naval brasses have good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the C486 alloys an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloys are also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.

Brass is an alloy mainly consisting of copper and zinc. Brass alloys can be easily shaped and are available in various colors. Brass has high thermal conductivity. UNS C66700 manganese brass alloy has high corrosion resistance and good cold formability. It is available as wire and flat products.

The C66800 Manganese Brass comes under the category of naval brass and is composed of 60% copper, 39.2% zinc and 0.8% tin. In compliance with typical naval brass the alloy possess good strength as well as rigidity. The corrosion resistance towards sea water is achieved due to the presence of zinc in place of tin. The addition of tin also makes the alloy resistant towards dezincification, fatigue, galling, and Applications: • Gears stress • Sealing Rings corrosion cracking. • Thrust Bearings • Bushings • Cams • Spindles • Bearings • Idler Pins • Connecting Rods • Drive Shafts • Valve Seats • Sleeve Bearings • Piston Heads

C66800 Manganese Bronze

Typical Uses

Industrial: Gears, Sealing Rings, Thrust Bearings, Bushings, Cams, Spindles, Bearings, Idler Pins, Connecting Rods, Drive Shafts, Valve Seats, Sleeve Bearings, Piston HeadsMarine: Pump Parts, Hardware, High Strength

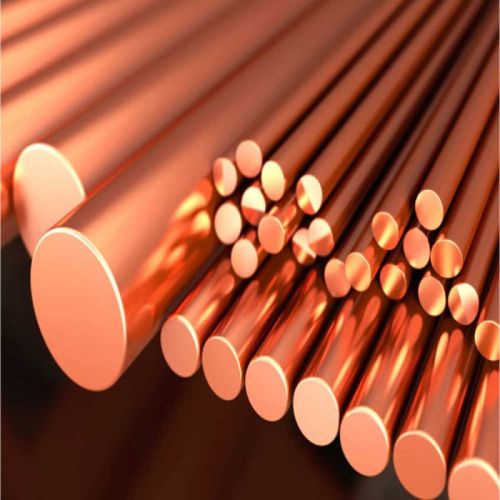

The C67000 Manganese Bronze B is high in strength alloy that possesses hot and cold workability with good forging ability. The alloy is manufactured using the process of bending, coining, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.

C67300 High Tensile Manganese Bronze Rods Extruded and drawn



Tough and corrosion resistant, C67300 manganese bronze, also known as C673, is a high-tensile bronze ideal for high-load, low-speed applications that require a combination of outstanding wear characteristics and high bearing strength.

C67400 High Tensile Brass Rods

CW713R is a high tensile brass which is alloyed with aluminum, manganese and silicon etc. which makes this alloy almost as hard as aluminum bronze, but considerably easier to process. CW713R also has good corrosion, wear resistance and machinability.

Typically this alloy is used in the automotive and hydraulic industries in forms of products such as Bearings for high load, slide-& wear-plates, valve guides, piston parts etc.

C67400 Manganese Bronze Alloy, with a nominal composition of 57-60% copper and 2.0-3.5% Manganese, alloy is manufactured using the process of bending, drawing, upsetting, and many other processes. The alloy is excellent on hot and cold workability and forges ability.

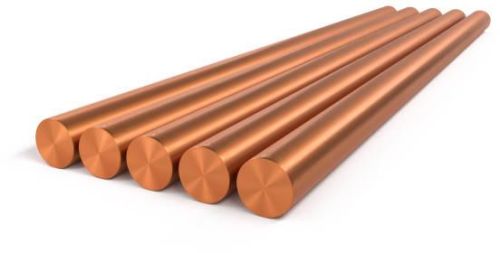

C67500 High Tensile Brass Rods

CW713R is a high tensile brass which is alloyed with aluminum, manganese and silicon etc. which makes this alloy almost as hard as aluminum bronze, but considerably easier to process. CW713R also has good corrosion, wear resistance and machinability.



Typically this alloy is used in the automotive and hydraulic industries in forms of products such as Bearings for high load, slide-& wear-plates, valve guides, piston parts etc.



Extruded and drawn

C67600 manganese bronze is a versatile extruded and drawn alloy known for its high strength and good corrosion resistance. In addition, C676 has a fairly low melting temperature and a moderately low heat capacity.

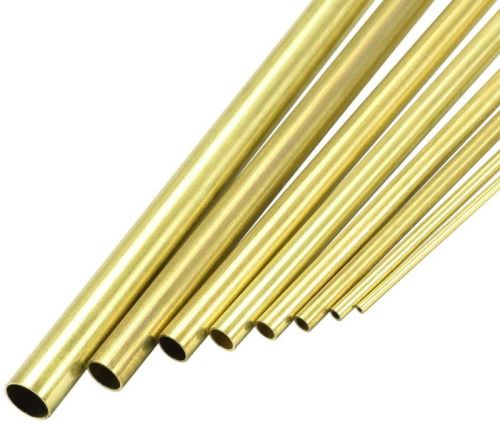

A Copper Zinc Alloy containing Aluminum and small amount of Arsenic which is added as an inhibitor against dezincification. Inhibited Aluminum brass resists the action of high velocity salt and brackish water and is commonly used for condensor tubes. The outstanding characteristics of aluminum brass is the high resistance to impingement attack. Tubes of this alloy are recommended for use in marine and land power stations where cooling water velocities are high and where inhibited admiralty brass has failed from impingement. TYPICAL APPLICATIONS: Condenser Tube, Evaporator Tubes, Ferrules, Distiller Tubes, Heat Exchanger Tubes
