CuZn10 has very good cold forming properties and is well suited for e.g. coinage, beating, embossing. This alloy has a higher strength as pure copper. It has good welding and brazing properties as well as a good corrosion resistant and is not fragile to stress corrosion and dezincification. CuZn10 is principally used in jewelry, metal goods, and watch industry and in electronic industry for installation parts. We produce qualities with grain sizes below 5 mm if needed.

Typical Uses :
Architecture: Weather Stripping, Screen Cloth, Ornamental Trim, Etching Bronze, Grill Work. Builders Hardware: Kick Plates, Hardware. Consumer: Housing for Lipstick Compacts, Costume Jewelry, Caskets, Ball Point Pens. Electrical: Wave Guides, Rotor Bar-AC Motors, Cable Warp. Fasteners: Screw Shells, Bolts, Line Clamps, Rivets. Industrial: Base for Vitreous Enamel, Escutcheons, Flexible Tube, Studs. Marine: Marine Hardware. Ordnance: Small Arms Cartridges, Artillery Projectile Rotating Bands, Press Fit, Primer Caps. Plumbing: Plumbers Brass Goods Typical Applications: Jewelry and metal good, Components for the electrical industry, Lead frames.

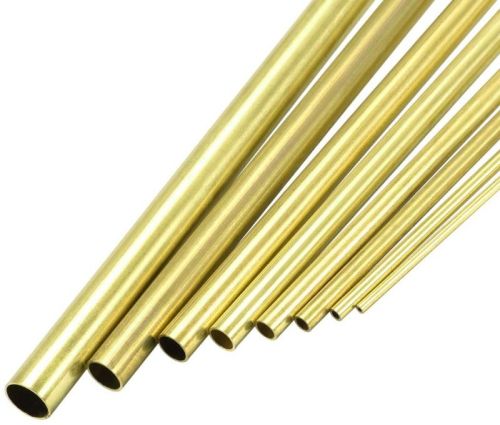

C26000 Cartridge Brass "70/30" (CDA 260)

ASTM B36 (Bar, Sheet, and Plate), ASTM B135 (Tubing), SAE J461

EN equivalent for this alloy CuZn30

Typical Uses for C26000 Cartridge Brass "70/30":

ARCHITECTURE: Grillwork

AUTOMOTIVE: Odometer Contacts, Heater Cores, Thermostats, Electrical Connectors, Radiator Cores, Radiator Tube, Radiator Tanks, Tanks

BUILDERS HARDWARE: Odometer Contacts, Heater Cores, Thermostats, Electrical Connectors, Radiator Cores, Radiator Tube, Radiator Tanks, Tanks

CONSUMER: Snaps, Planters, Fireplace Screens, Etched Articles, Bird Cages, Coinage, Chain Links, Pen/Pencil Inserts and Clips, Syringe Parts, Watch Parts, Costume Jewelry, Buttons, Shells - Electrical Sockets, Lamps

ELECTRICAL: Terminal Connectors, Flashlight Shells, Lamp Fixtures, Reflectors, Screw Shells

FASTENERS: Pins, Rivets, Fasteners, Grommets, Eyelets, Screws

INDUSTRIAL: Air Pressure Conveyer Systems, Sound Proofing Equipment, Springs, Chain, Bead Chain, Tubing for Instruments and Machines, Heat Exchangers, Pump Cylinders, Wire Screens, Pumps, Liners, Power Cylinders

ORDINANCE: Ammunition Cartridge Cases, Mechanical Housings for Lighters, Shells - Mechanical Housings for Ammunition, Ammunition

PLUMBING: Fittings, Bathroom Fixtures, Plumbing Accessories, Faucet Escutcheons, Traps, Plumbing Brass Goods

OTHER: Stencils, Washers

Specifications

End Product        Specification

Bar         ASTM B36, B19, SAE J463, J461

Brazing Filler Metal         FEDERAL QQ-B-650

Cups, Cartridge Case       ASTM B129, MILITARY MIL-C-10375,

Disk        ASTM B19

Plate      AMS 4507, 4505, ASTM B19, B36

Rod        SAE J463, J461

Sheet     AMS 4507, 5408, 4505, ASTM B19, B36, SAE J463, J461

Shim Stock, Laminated   MILITARY MIL-S-22499

Strip       AMS 4507, 4505, ASTM B36, B569, B19, B888, SAE J463, J461

Tube, Seamless  ASTM B135, FEDERAL WW-T-791, MILITARY MIL-T-20219, SAE J463, J461

Tube, Welded     ASTM B587, B587

Wire      ASTM B134, SAE J463, J461

C26000 Cartridge Brass "70/30" (CDA 260)

ASTM B36 (Bar, Sheet, and Plate), ASTM B135 (Tubing), SAE J461

EN equivalent for this alloy CuZn30

Typical Uses for C26000 Cartridge Brass "70/30":

ARCHITECTURE: Grillwork

AUTOMOTIVE: Odometer Contacts, Heater Cores, Thermostats, Electrical Connectors, Radiator Cores, Radiator Tube, Radiator Tanks, Tanks

BUILDERS HARDWARE: Odometer Contacts, Heater Cores, Thermostats, Electrical Connectors, Radiator Cores, Radiator Tube, Radiator Tanks, Tanks

CONSUMER: Snaps, Planters, Fireplace Screens, Etched Articles, Bird Cages, Coinage, Chain Links, Pen/Pencil Inserts and Clips, Syringe Parts, Watch Parts, Costume Jewelry, Buttons, Shells - Electrical Sockets, Lamps

ELECTRICAL: Terminal Connectors, Flashlight Shells, Lamp Fixtures, Reflectors, Screw Shells

FASTENERS: Pins, Rivets, Fasteners, Grommets, Eyelets, Screws

INDUSTRIAL: Air Pressure Conveyer Systems, Sound Proofing Equipment, Springs, Chain, Bead Chain, Tubing for Instruments and Machines, Heat Exchangers, Pump Cylinders, Wire Screens, Pumps, Liners, Power Cylinders

ORDINANCE: Ammunition Cartridge Cases, Mechanical Housings for Lighters, Shells - Mechanical Housings for Ammunition, Ammunition

PLUMBING: Fittings, Bathroom Fixtures, Plumbing Accessories, Faucet Escutcheons, Traps, Plumbing Brass Goods

OTHER: Stencils, Washers

Specifications

End Product        Specification

Bar         ASTM B36, B19, SAE J463, J461

Brazing Filler Metal         FEDERAL QQ-B-650

Cups, Cartridge Case       ASTM B129, MILITARY MIL-C-10375,

Disk        ASTM B19

Plate      AMS 4507, 4505, ASTM B19, B36

Rod        SAE J463, J461

Sheet     AMS 4507, 5408, 4505, ASTM B19, B36, SAE J463, J461

Shim Stock, Laminated   MILITARY MIL-S-22499

Strip       AMS 4507, 4505, ASTM B36, B569, B19, B888, SAE J463, J461

Tube, Seamless  ASTM B135, FEDERAL WW-T-791, MILITARY MIL-T-20219, SAE J463, J461

Tube, Welded     ASTM B587, B587

Wire      ASTM B134, SAE J463, J461

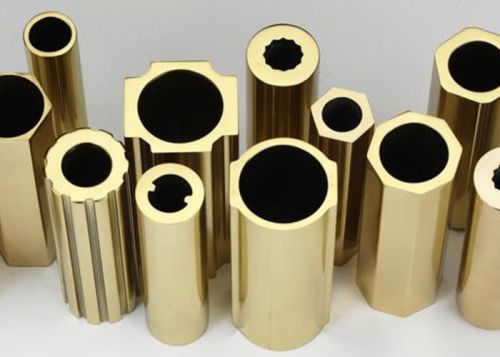

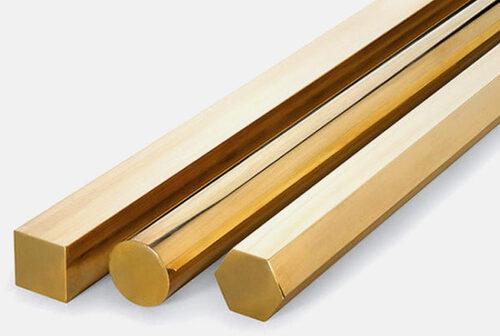

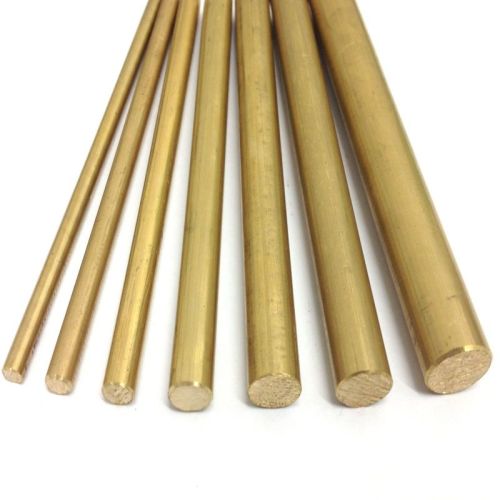

C27000 Yellow Brass "65%" (CDA 270)

ASTM B134, SAE J461

Hot-forms more readily and is stronger than C26000.

Typical Uses for C27000 Yellow Brass "65%":

ARCHITECTURE: Handrails, Grillwork

AUTOMOTIVE: Tanks, Radiator Cores

BUILDERS HARDWARE: Push Plates, Finish Hardware, Hinges, Stencils, Kick Plates, Locks

ELECTRICAL: Socket Shells, Screw Shells, Reflectors, Lamp Fixtures, Flashlight Shells

FASTENERS: Grommets, Eyelets, Screws, Rivets, Fasteners, Pins

INDUSTRIAL: Bead Chain, Springs, Chain

MARINE: Fasteners

PLUMBING: Sink Strainers, Plumbing Accessories

Specifications

End Product        Specification

Bolt        ASTM F468

Nuts       ASTM F467

Rod        SAE J463, J461

Screws  ASTM F468

Studs     ASTM F468

Tube      ASTM B135

Tube, Welded     ASTM B587

Wire      AMS 4712, 4713, ASTM B134, SAE J463, J461

Wire, Tinned       AMS 4710

C27000 Yellow Brass "65%" (CDA 270)

ASTM B134, SAE J461

Hot-forms more readily and is stronger than C26000.

Typical Uses for C27000 Yellow Brass "65%":

ARCHITECTURE: Handrails, Grillwork

AUTOMOTIVE: Tanks, Radiator Cores

BUILDERS HARDWARE: Push Plates, Finish Hardware, Hinges, Stencils, Kick Plates, Locks

ELECTRICAL: Socket Shells, Screw Shells, Reflectors, Lamp Fixtures, Flashlight Shells

FASTENERS: Grommets, Eyelets, Screws, Rivets, Fasteners, Pins

INDUSTRIAL: Bead Chain, Springs, Chain

MARINE: Fasteners

PLUMBING: Sink Strainers, Plumbing Accessories

Specifications

End Product        Specification

Bolt        ASTM F468

Nuts       ASTM F467

Rod        SAE J463, J461

Screws  ASTM F468

Studs     ASTM F468

Tube      ASTM B135

Tube, Welded     ASTM B587

Wire      AMS 4712, 4713, ASTM B134, SAE J463, J461

Wire, Tinned       AMS 4710

C27000 Yellow Brass "65%" (CDA 270)

ASTM B134, SAE J461

Hot-forms more readily and is stronger than C26000.

 Typical Uses for C27000 Yellow Brass "65%":

ARCHITECTURE: Handrails, Grillwork

 AUTOMOTIVE: Tanks, Radiator Cores

 BUILDERS HARDWARE: Push Plates, Finish Hardware, Hinges, Stencils, Kick Plates, Locks

 ELECTRICAL: Socket Shells, Screw Shells, Reflectors, Lamp Fixtures, Flashlight Shells

 FASTENERS: Grommets, Eyelets, Screws, Rivets, Fasteners, Pins

 INDUSTRIAL: Bead Chain, Springs, Chain

 MARINE: Fasteners

 PLUMBING: Sink Strainers, Plumbing Accessories

C27200 Yellow Brass Rod 64/36

We are one of the leading manufacturer and suppliers of Lead-Free Brass Wire with the using of the high quality of material, as per the industry standards.

IS4413

CuZn37

DTD-627

60:40 Brass

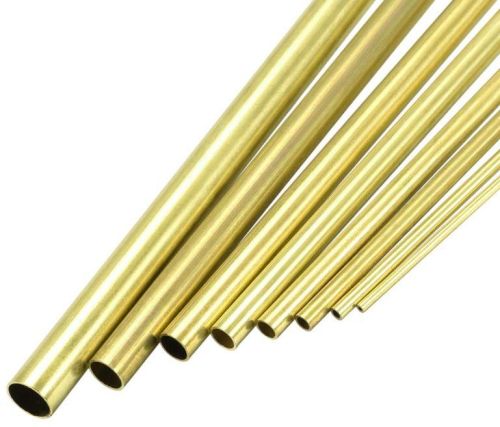

C27200 Yellow Brass Tube 64/36

We are one of the leading manufacturer and suppliers of Lead-Free Brass Wire with the using of the high quality of material, as per the industry standards.

 IS4413

CuZn37

DTD-627

60:40 Brass

C27400 Yellow Brass "63/37"

Hot-forms more readily and is stronger than C26000.

 Typcial Uses for C27400:

INDUSTRIAL: Cold Headed Parts

 PLUMBING: Plumbing Accessories, Traps, Plumbing Trap Tube

 Specifications

End Product        Specification

Tube      ASTM B135

Wire      ASTM B134

C27400 Yellow Brass "63/37"

Hot-forms more readily and is stronger than C26000.

Typcial Uses for C27400:

INDUSTRIAL: Cold Headed Parts

PLUMBING: Plumbing Accessories, Traps, Plumbing Trap Tube

Specifications

End Product        Specification

Tube      ASTM B135

Wire      ASTM B134

C27400 Yellow Brass "63/37"

Hot-forms more readily and is stronger than C26000.

Typcial Uses for C27400:

INDUSTRIAL: Cold Headed Parts

PLUMBING: Plumbing Accessories, Traps, Plumbing Trap Tube

Specifications

End Product        Specification

Tube      ASTM B135

Wire      ASTM B134

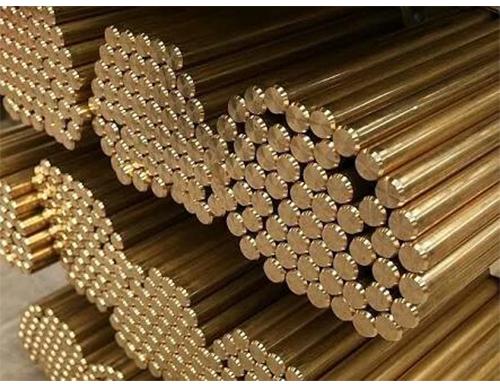

C27450 Dzr Lead Free Brass Bars

C27450 Lead Free Brass to not only aid in lead free compliance, but to optimize manufacturing efficiencies through productivity & complete recyclability.

Typical Applications:

Potable water components, fixtures & applications

PEX plumbing applications & systems

Forged products requiring lead free &/or dezincification compliance

Advantages:

Good machineability

Excellent ability to Thread Roll

Dezincification Resistant

Excellent forgeability

Excellent Brazing & Plating

Lead Free Brass C27450 (Alloy C2745) Supplier

We are proud to be your brass manufacturer and supplier of high performing, lead-free C2745. Alloy C2745 is a lead-free brass that was created in response to commercial and residential requirements for lead-free brass in the plumbing industry. This requirement for lead-free brass in the plumbing industry was established in 2011 and enacted in 2014.

lead free C27450 (Alloy C2745) can be substituted for Alloy 377 without compromising the integrity of the finished part. This indicates that a product can be made that delivers similar strength, corrosion resistance, and quality at a cost savings benefit. Typically, the end use is lead-free plumbing products that meet plumbing legislative requirements. Alloy C2745 brass profiles come in various shapes, such as, hexagon, round, square, and other shaped brass rods and brass bars.

C28000 Muntz Metal, also known as 60/40, is copper alloyed with zinc. C280 Muntz is most commonly found in sheet and plate form. Cu Zn40 is considered a duplex alpha-plus-beta brass and has excellent hot-working properties but is less corrosion resistant than C464 Naval Brass. C28000 Muntz is commonly used in architectural applications, including decorative panels, elevators, trim work and signage. Compared to the yellow tones of C260 Cartridge Brass, C280 Muntz has a warmer appearance that readily takes to polishing. Industrial applications for 280 brass include baffles and tubesheets.

Applications :-

• Plumbing Fittings.
• Plumbing Valves.
• Plumbing Taps.

ASTM B135/B135M, ASME SB135, AMS4554, AMS 4555, FEDERAL WW-T-791,MILITARY MIL-T-46072, SAE J461,SAE J463, UNS C33000 C33000 brass tubing, a yellow brass that is both formable and machinable. C330 is only produced in tube form and is generally suitable for minimal corrosive conditions. The lead content prevents successful welding, but common machine processes include machining, forming, piercing, and punching.

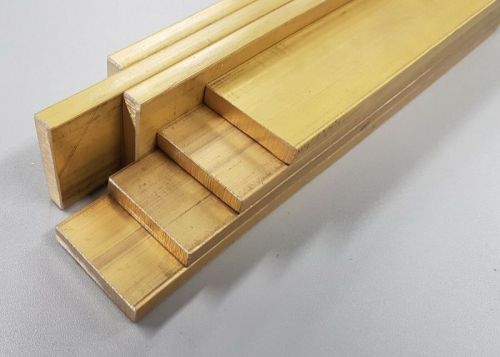

C34500 High Leaded Brass "64%"

C345 Typical Uses (SAE J461):

Industrial:Pinions, Gears, Valve Stems, Flare Fittings, Adapters, Couplings

Plumbing:Plumbing Fittings, Plumbers' Brass Goods

Specifications

End Product        Specification

Rod        ASTM B453/B453M

Rod        SAE J461

Rod        SAE J463

C35300 High Leaded Brass "62%"

EN equivalent CuZn38Pb2 -CW606N

Available in continuous Wire-in-Coil or Small Coils

Typical Uses

Builders Hardware: Drawer Pulls, Hinges, Drawer Handles

 Consumer: Bicycle Spoke Nipples, Clock and Watch Parts, Clock Plates and Nuts, Key Blanks

 Fasteners: Nuts, Rivets, Screws

 Industrial: Ratchets, Instrument Backs, Automatic Screw Machine Parts, Valve Stems, Pinions, Flare Fittings, Couplings, Bearing Cages, Channel Plate, Wheels, Gears, Adapters

 Other: Engravers Plate

 Plumbing: Faucet Seats, Faucet Stems, Pipe Fittings, Plumbers Fittings, Plumbers' Brass Goods

 Specifications

End Product        Specification

Bar         ASTM B453

Plate      ASTM B121

Sheet     ASTM B121

Strip       ASTM B121

C35330 DZR Brass (CW511L)

CDA3533, CDA486, AS-352, Q214åÊ

Cu-Zn alloys containing more than 15% Zn are susceptible to a dealloying process called Dezincification where the selective removal of Zn leaves a relatively porous and weak layer of Cu and Cu oxide. Corrosion of a similar nature continues beneath the primary corrosion layer resulting in gradual replacement of sound brass by weak, porous copper. Unless arrested this corrosion mechanism eventaully penetrates the metal, weakening it structurally and allowing liquids or gasses to leak through this porous mass.

Additions of As (typically 0.02 - 0.25%) to alpha brasses effectively produces high resistance to dezincification at normal operating temperatures. A further addition of Sn (up to 1.5%) further enhances resistance to dezincification and has led to the development of Naval brasses with good resistance in marine environments.

Typical Uses

Plumbing:åÊ Plumbers Fittings, Plumbers' Brass Goods

C36000 Free Cutting Brass / Free Machining Brass

ASTM B16, SAE J461, SAE J463, SAE 72 AMS 4610, CW603N, CuZn36Pb3, DIN 2.0375

C36000 Free Cutting Brass / Free Machining Brass is ideally suited for high speed machining operations with its superior machinability, thread rolling and knurling characteristics. Its machinability rating of 100 is standard against which all other copper alloys are rated. It is easily soldered or brazed and has good resistance to corrosion.

BUILDERS HARDWARE: Lock Bodies, Hardware, Fittings

CONSUMER: Hot Combs (to Straighten Hair)

FASTENERS: Bolts, Nuts, Screws

INDUSTRIAL: Faucet Components, Pneumatic Fittings, Fluid Connectors, Automatic Screw Machine Parts, Unions, Adapters, Screw Machine Products, Gauges, Valve Seats, Valve Trim, Valve Stems, Nozzles, Pinions, Gears

PLUMBING: Plumbers' Brass Goods, Faucet Stems, Faucet Seats, Plumbing Fittings

C36000 Free Cutting Brass / Free Machining Brass

C3600 Free Machining Brass

Available in continuous Wire-in-Coils or Small Coils

Standards: ASTM B16, SAE J461, SAE J463, SAE 72 AMS 4610, CW603N, CuZn36Pb3, DIN 2.0375

 C36000 Free Cutting Brass / Free Machining Brass is ideally suited for high speed machining operations with its superior machinability, thread rolling and knurling characteristics. Its machinability rating of 100 is standard against which all other copper alloys are rated. It is easily soldered or brazed and has good resistance to corrosion.

Typical Uses for CDA 360 Free Machining Brass / Free Cutting Brass:

BUILDERS HARDWARE: Lock Bodies, Hardware, Fittings

CONSUMER: Hot Combs (to Straighten Hair)

FASTENERS: Bolts, Nuts, Screws

INDUSTRIAL: Faucet Components, Pneumatic Fittings, Fluid Connectors, Automatic Screw Machine Parts, Unions, Adapters, Screw Machine Products, Gauges, Valve Seats, Valve Trim, Valve Stems, Nozzles, Pinions, Gears

PLUMBING: Plumbers' Brass Goods, Faucet Stems, Faucet Seats, Plumbing Fittings

Sizes Available From NBM

HOLLOW BAR. . . . . . . . . . .up to 3" O.D. (with min w/t of 3/16")

SOLID BAR. . . . . . . . . . . . . 3/32" - 16" diameter

HEX BAR. . . . . . . . . . . . . . . 5/32" - 4" hex

RECTAGULAR BAR. . . . . . 1/8" - 2" thick and to 8" wide

SQUARE BAR. . . . . . . . . . .1/8" - 4" squre

PROFILES / SECTIONS. . . made to order

C36000 Alloy Specifications

End Product        Specification

Bar         AMS 4610, ASTM B16, SAE J461, J463

Rod        AMS 4610, ASTM B16, SAE J461, J463

Shapes  ASTM B16, SAE J461, J463

Valves   MILITARY MIL-V-18436

Wire      ASTM B16

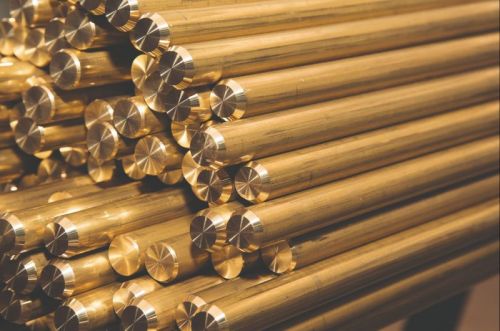

C36300 alloy provides a lower lead brass alloy option that aids with the compliance strategies of manufacturers who seek an alternative that is not only COMPLIANT, but also COMPETITIVE and COMPATIBLE with standard free cutting and forgings alloys commonly used today.

TYPICAL APPLICATIONS ŸScrew machine parts and components for potable water products requiring lead free compliance ŸForged parts and components for potable water products requiring lead free compliance ADVANTAGES ŸExcellent machineability ŸExcellent capability for brazing and plating ŸImproved resistance to dezincification CHEMICAL COMPOSITION Min/Max Nominals • Good hot Forgability • Excellent ability to thread roll
